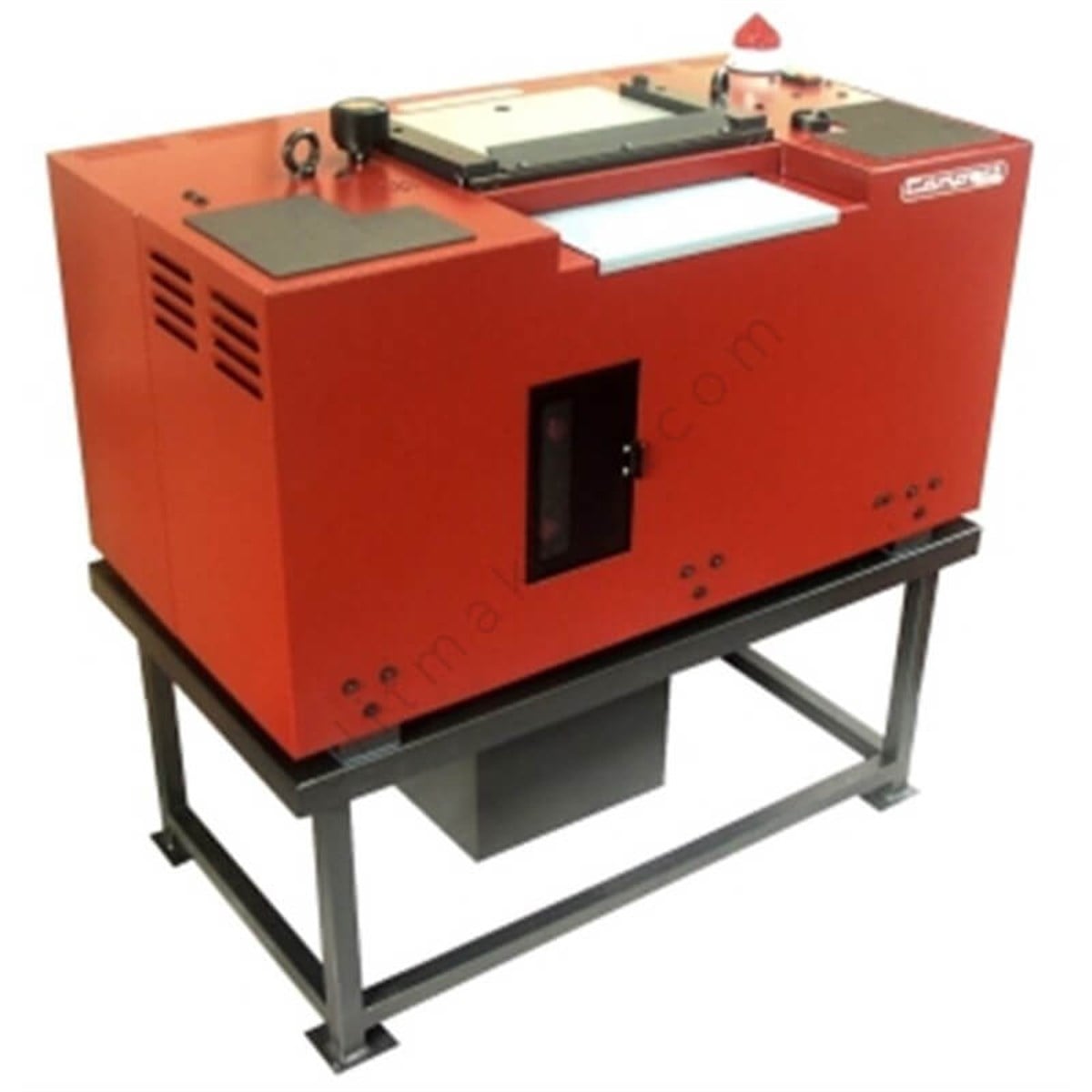

Camoga Compact

Leather Splitting Machine

FEATURES - No knife trend setting • • - Grinding unit suitabe for corundum or diamond wheels • • - Guide gibs group with automatic adjustment - Independent exhaustors for emery dust and working scraps - Wheel moving on precision roller guides • • - Optical viewer to check bevel - Analog thick- ness readout - Handbook and service wrenches - Ergonomic work position to reduce tiredness • • - Safety device in compliance with CE standards - Low noise level - Life lubricated mechanical components - Access to all components for an easy and rapid servicing • • Features introduced for the first time by Camoga Model Compact Feed Table Height 0.95 m Installed Power 1.0 kW Net Weight 173 kg Gross Weight 219 kg Machine Dimensions (m) 0.98x0.62x1.05 Case Dimensions (m) 1.15x0.84x1.28 Technical Data: Accessories: Working Width: 300 mm Max Thickness: 5 mm Min Thickness: 0.2/0.8 mm Knife Dimension: 0.5*40*2065 mm Upper Roll Rubber

Technical Data:

Accessories: 520 mm

Max Thickness: 8 ( 1 ) mm

Thickness: 0.6/0.2 mm

Knife Dimension: 0.8*60*3950 mm

Upper Roll Rubber Coated Bot Feed Roll Alternative grinding unit: Diam/Corum Mechanical Thickness Gauge
